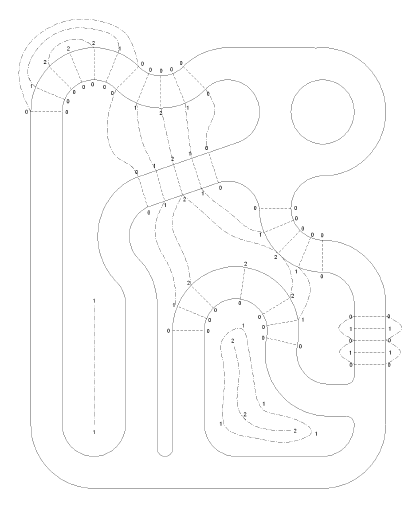

See More of This Topic Concept & Design On Saturday June 15, 2002, David sat in the living room and roughed out a design for a public park raceway that could be used by tricycles, bicycles, BMX bicycles, pedal cars, scooters, skateboards, roller-skates, and rollerblades. A couple hours later the hand drawn draft was cleaned up with a CAD program and this drawing was completed. The concrete surface has a typical width of eight-feet. The dashed contour lines represent a one-foot elevation separation. There are four banked curves, one hill, and a set of moguls. The overall dimension is 90 x 110. During the next few days light poles and signs were added to this design. Then detailed construction drawings were prepared to include site grades, drainage and pavement specifications. (06.15.02) |
